D4C tested MONO5 10SHD Band 10 m "Super Heavy Duty" monobander

Introducing the Monoband 5 Elements Yagi for 28 MHz, meticulously engineered to deliver outstanding performance in even the most challenging conditions. Designed specifically for high-wind environments, this antenna has been rigorously tested at the renowned D4C Contest Station, ensuring reliability and durability under extreme circumstances.

Key Features:

• Frequency: 28 MHz (Monoband)
• Elements: 5 high-precision elements for superior gain and directivity
• Wind Resistance: Built to withstand high winds, ideal for harsh environments

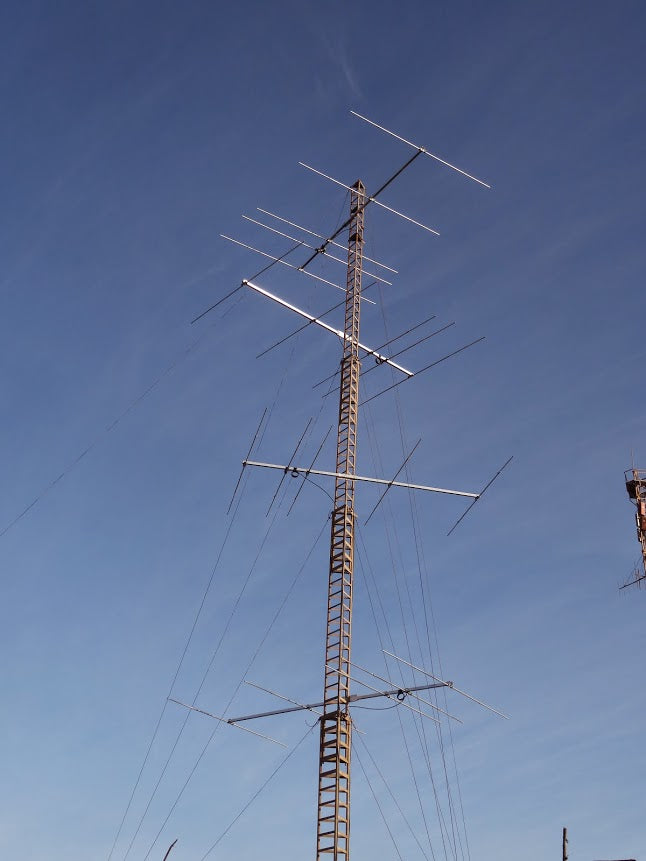

• Tested at D4C Contest Station: Proven in real-world, competitive scenarios
• Quality Assurance: Manufactured by Momobeam, a trusted name in antenna production

Whether you're a serious contester or an amateur radio enthusiast, this Yagi antenna delivers exceptional performance, robust construction, and reliability you can count on. Experience the Momobeam difference with this high-quality antenna designed to elevate your operations to the next level.

Don't compromise on performance or durability—order your Monoband 5 Elements Yagi for 28 MHz today!

CHARACTERISTICS:

Gain dBi: (20 meters above the ground)    15.33
Gain dBd free space:    7.62
F/B:    22.8
Active elements:    5
Bandwidth KHz
S.W.R.  1.5:1    900 KHZ
Boom Length:    590 cm/19.4 ft
Turning radius:    350 cm/11.5 ft
Feed lines required:    1 X 50 Ohm
Max tower lift side:    120 cm/3.9 ft
Longest element: 556 cm/18.24 ft
Power handling: 3 kW
Wind area: 0.60 m²/6.40 sq ft
Wind survival: 160 kmh - 100 mph
Tower Leg/Mast diameter: 50/60 mm - 2/2.36 inch (larger on request)
RF choke**: 3 KW included
Weight (excluding packaging): 38 Kg/84 lb  (2box 240x20x20cm)

Materials used:
Tubes and plates: Aluminum alloy 6061T6 / 6082T6
Hardware: stainless steel
insulating clamps: polypropylene UV resistant

6-8 WEEKS DELIVERY TIME FROM PAYMENT
